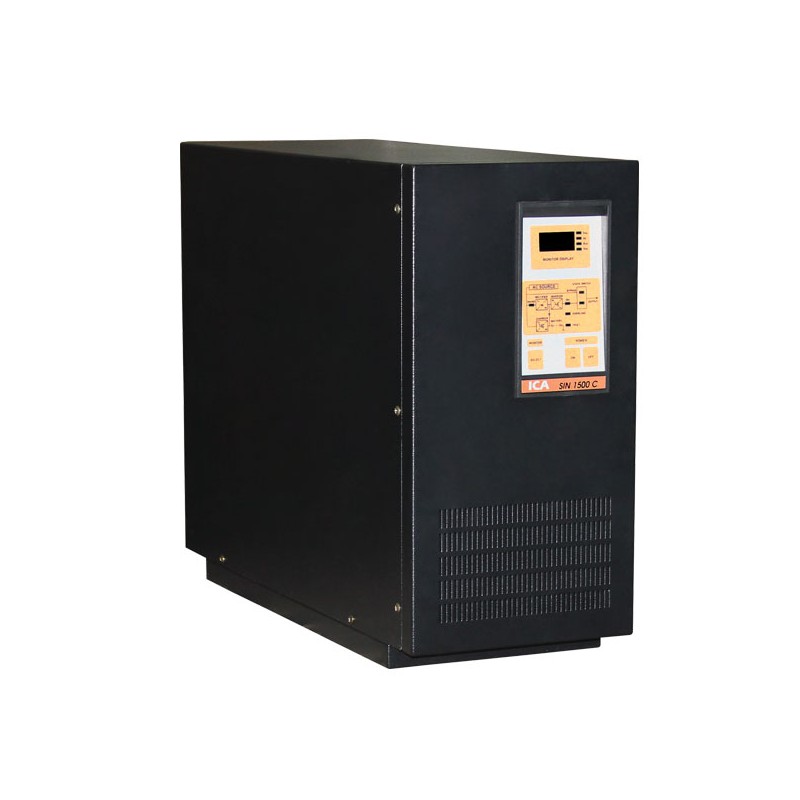

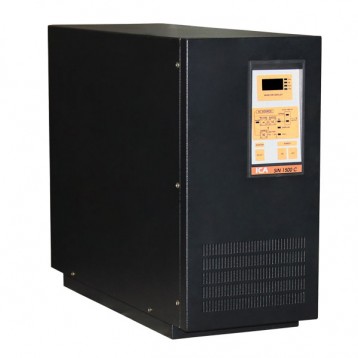

UPS ICA SIN2100C 3100 VA

Deskripsi UPS ICA SIN2100C 3100 VA

Description : UPS SIN2100C

Capacity : 3100 VA / 2015 W

AC Voltage : 185 - 250 V

AC Frequency : 50 5% Hz

AC Protection : NO FUSE BREAKER

DC Voltage : 120 V

DC INT Battery : 10 x 12 V, 7 Ah

DC Protection : NO FUSE BREAKER

CHG Topology : SWITCHING REGULATION

CHG Floating Voltage : 136 V

INV Waveform : SINUSOIDA

INV Distorsion : < 3% THD

INV Topology : PULSE WIDTH MODULATION (PWM)

INV Voltage : 220 2% V

INV Frequency : 50 1% Hz

INV Efficiency : > 85%

Transfer Time When AC In Loss : 0 ms

Static Transfer Switch : 2 ms From Inverter to Bypass, 0 ms Back To Inverter

Back Up Time : 10 min

Buzer UPS In Bypass Condition : INTERMITTENT SOUND WITH 30 SECONDS INTERVAL

Buzer AC In Abnormal : INTERMITTENT SOUND WITH 4 SECONDS INTERVAL

Buzer Battery Low : INTERMITTENT SOUND WITH 1 SECONDS INTERVAL

Opera Temp : 0 - 40 C

Dimension (DxWxH) : 630 x 265 x 610 mm
