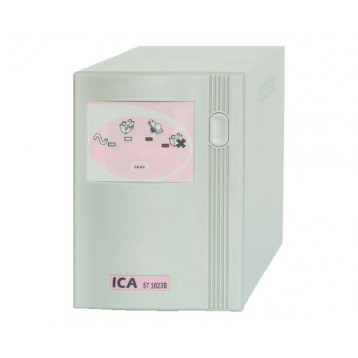

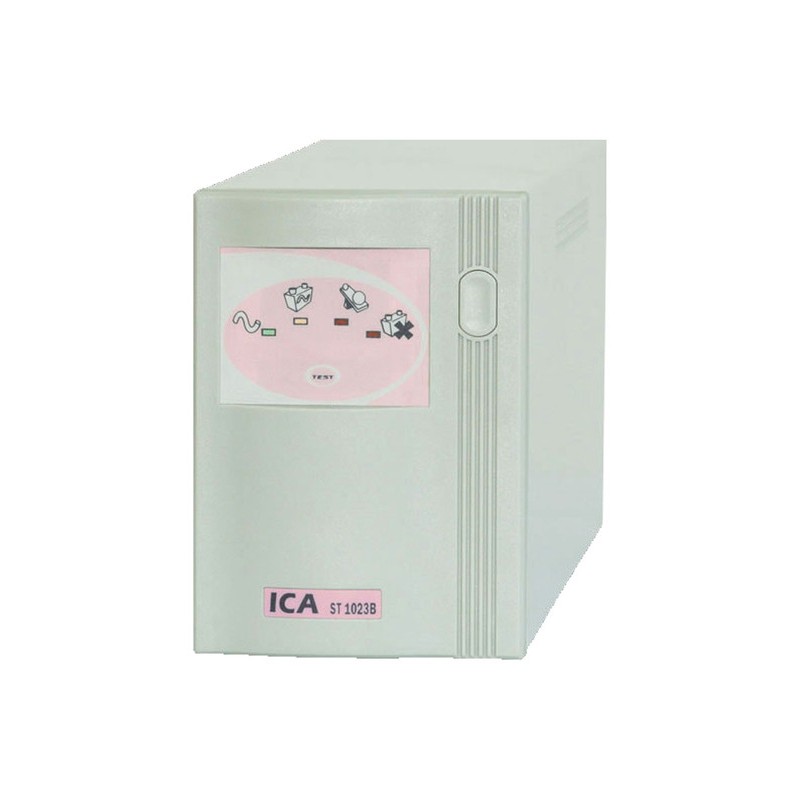

UPS ICA ST1023B 2000 VA

Deskripsi UPS ICA ST1023B 2000 VA

Description : UPS ST1023B

Capacity : 2000 VA / 1000 W

AC Voltage : 160 - 250 V

AC Frequency : 50 3 Hz

AC Protection : 10 A

DC Voltage : 36 V

DC INT Battery : 3 x 12 V, 7 Ah

DC Protection : FUSE

CHG Topology : CONSTANT VOLTAGE

CHG Floating Voltage : 40.8 V

INV Waveform : SINEWAVE

INV Distorsion : < 3% THD

INV Topology : PULSE WIDTH MODULATION (PWM)

INV Voltage : 220 5% V

INV Frequency : 50 1% Hz

INV Efficiency : 80%

Transfer Time : 4 ms

Back Up Time : 10 min BZR AC Input Low / Fail

Buzer AC Input Low / Fail : INTERMITTENT SOUND WITH 4 SECONDS INTERVAL

Buzer AC Input High : INTERMITTENT SOUND WITH 1 SECONDS INTERVAL

Buzer Battery Low : INTERMITTENT SOUND WITH 1 SECONDS INTERVAL

Opera Temp : 0 - 40 C

Dimension (DxWxH) : 505 x 140 x 200 mm
