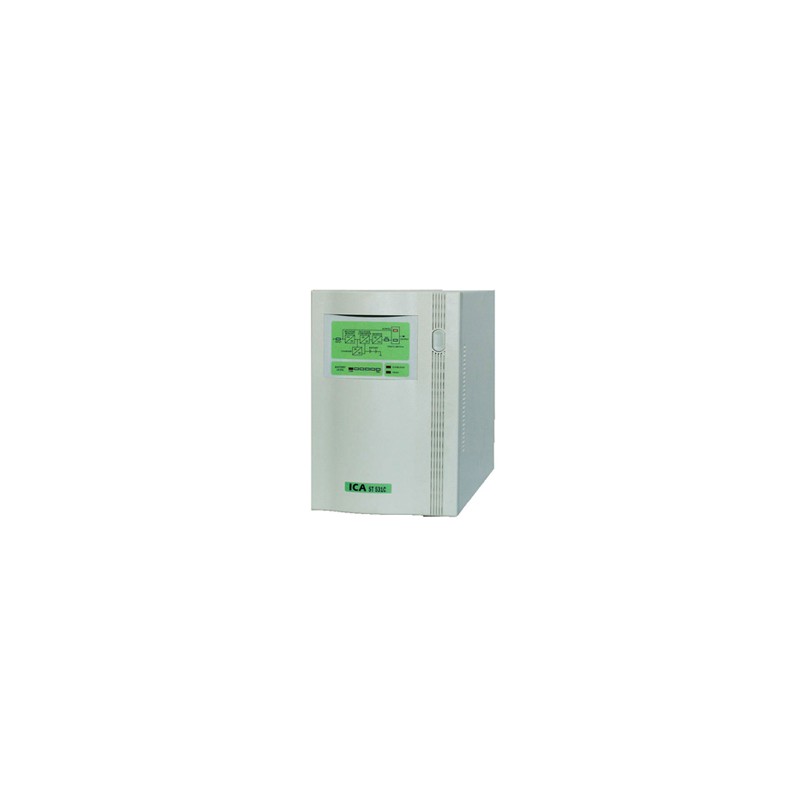

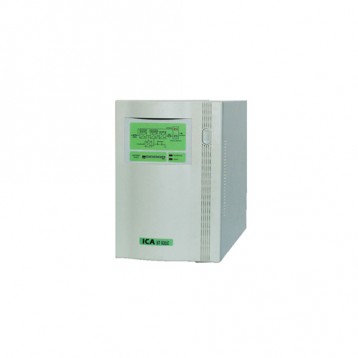

UPS ICA ST531C 1000 VA

Deskripsi UPS ICA ST531C 1000 VA

Description : UPS ST531C

Capacity : 1000 VA / 500 W

AC Voltage : 160 - 250 V

AC Frequency : 50 3 Hz

AC Protection : 5 A

DC Voltage : 24 V

DC INT Battery : 2 x 12 V, 7 Ah

DC Protection : FUSE

CHG Topology : SWITCHING REGULATION

CHG Floating Voltage : 27.2 V

INV Waveform : SINEWAVE

INV Distorsion : < 3% THD

INV Topology : PULSE WIDTH MODULATION (PWM)

INV Voltage : 220 2% V

INV Frequency : 50 1% Hz

INV Efficiency : > 85%

Transfer Time AC Fail : 0 ms

Transfer Time STS : 2 ms Inverter to Bypass

: ZERO CROSSING BYPASS TO INVERTER

Back Up Time : 10 min

Buzer AC Input Low / Fail : INTERMITTENT SOUND WITH 4 SECONDS INTERVAL

Buzer Battery Low : INTERMITTENT SOUND WITH 1 SECONDS INTERVAL

Opera Temp : 0 - 40 C

Dimension (DxWxH) : 395 x 190 x 290 mm
