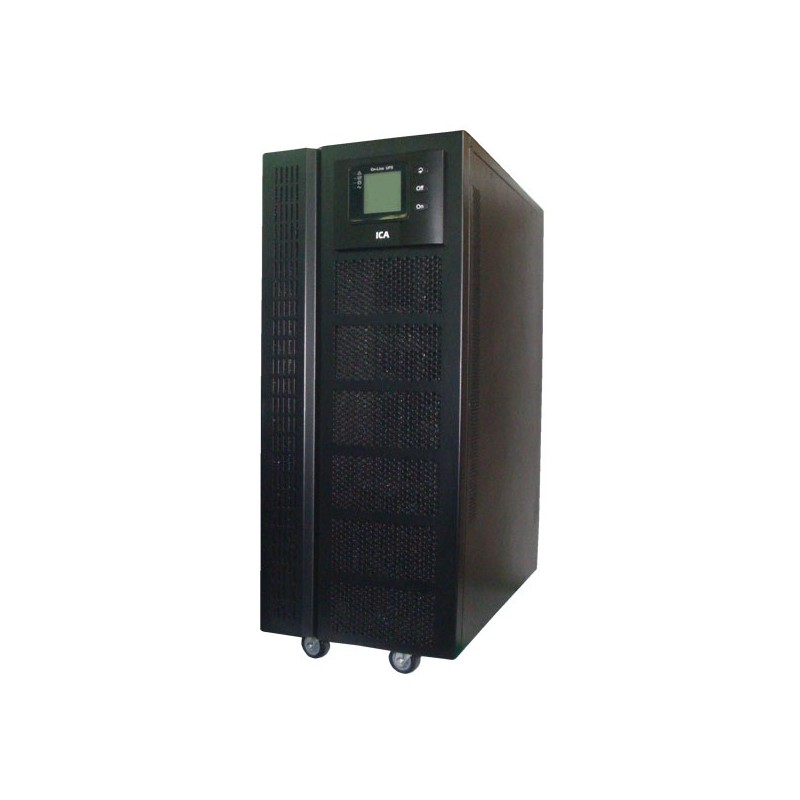

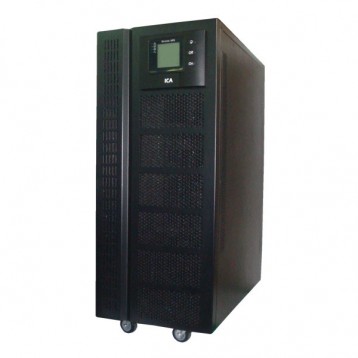

UPS ICA SE1102C11 - 10 KVA

Deskripsi UPS ICA SE1102C11 - 10 KVA

Description : UPS SE1102C11

Capacity : 10000 VA / 9000 W

AC Voltage : ONE PHASE, 120 ~ 276 V

AC Frequency : 45 ~ 65 Hz

AC Protection : 63 A

DC Voltage : 240 V

DC INT Battery : 20 x 12 V, 7 AH

DC Protection : FUSE

CHG Topology : SWITCHING REGULATION

CHG Floating Voltage : 272 V

Inv Out Waveform : SINE WAVE

Inv Out Distorsion : < 2% THD

Inv OutTopology : ONLINE DOUBLE CONVERSION

Inv Out Voltage : 220 1% V

Inv Out Frequency : 50 1% Hz

Inv Out Efficiency : > 90 %

Transfer Time When AC In Loss : 0 ms

Static Transfer Switch : 0 ms

Back Up Time : 10 min

Buzer AC In Abnormal : INTERMITTENT WITH 2 SECOND INTERVAL

Buzer Battery Low : INTERMITTENT SOUND WITH 1 SECONDS INTERVAL

Opera Temp : 0 - 40 C

Dimension (DxWxH) : 502 x 250 x 616

Weight : NETTO 64 Kg, BRUTO 68 Kg
