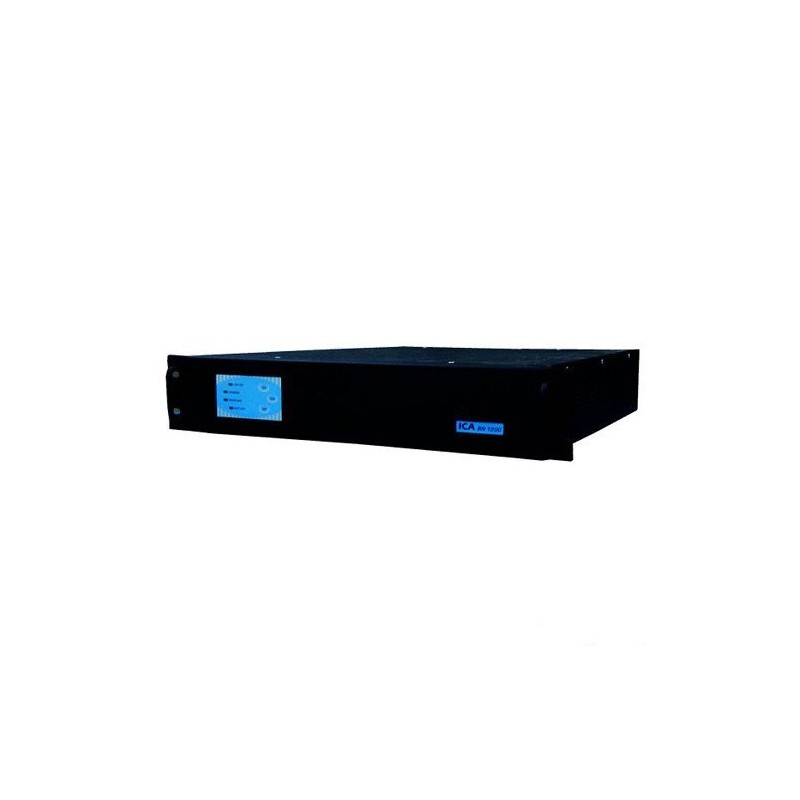

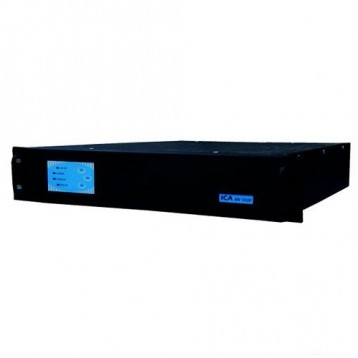

UPS ICA RN1200 - 1200 VA

Deskripsi UPS ICA RN1200 - 1200 VA

Description : UPS RN1200

Capacity : 1200 VA / 600 W

AC Voltage : 160 - 250 V

AC Frequency : 50 3 Hz

AC Protection : 6.3 A

DC Voltage : 24 V

DC INT Battery : 2 x 12 V, 7 Ah

DC Protection : FUSE

CHG Topology : CONSTANT VOLTAGE

CHG Floating Voltage : 27.2 V

INV Waveform : SINEWAVE

INV Distorsion : < 3% THD

INV Topology : PULSE WIDTH MODULATION (PWM)

INV Voltage : 220 2% V

INV Frequency : 50 1% Hz

INV Efficiency : 80%

Back Up Time : 4 ms

Buzer AC Input Low / Fail : INTERMITTENT SOUND WITH 4 SECONDS INTERVAL

Buzer AC Input High : INTERMITTENT SOUND WITH 1 SECONDS INTERVAL

Buzer Battery Low : INTERMITTENT SOUND WITH 1 SECONDS INTERVAL

Opera Temp : 0 - 40 C

Dimension (DxWxH) : 450 x 350 x 87 mm

Weight : 20 Kg
